PV-900 EVO3 Main Features:
- Wi-Fi Covert Smartphone DVR
- Record, stream, and live view the video via the free App
- Depth of 8.4mm, with built-in 64G memory
- Supports up to 1080p resolution with @25fps/30fps/60fps options
- Multiple recording modes: Auto/Manual/Motion Detection
- The instant-record key starts recording in 3 sec after the device is powered on
- Multi-layered password protection option
- Optional LED indicators
- Optional Vibration alert
- Recording time up to 230 minutes
PV-900 EVO3 Full Specifications:
LCD: 5″ 854 x 480 TFT-LCD
Built-in Image Sensor: 1/3″ progressive CMOS sensor
Sensor Resolution: 2304×1536
Sensor Sensitivity: 3.3 Lux @ F 2.0
Lens F/No.: F 3.2
Focal Length: 4mm
Angle of View: 66°
Algorithm: H.264, JPEG
File Format: MOV, JPG
Video Recording Mode: Auto/Manual/Motion Detection
Recording Capability: 1920×1080, 1280×720, 640×480
Frame Rate: Up to 60 fps (25fps/30fps/60fps)
Photo Capability: 5M(2592*1944)
Memory Type: Built-in memory: 64G Module
Data Interface: Mini USB 2.0
Disguised Mode: Stand-By, LCD-Off
Date/Time Table: YYYY/MM/DD, HH:MM:SS
Power Input: DC5V
Power Consumption: 710mA(Wi-Fi off)-850mA(Wi-Fi on) LCD ON
Battery Input: DC 3.7V / 2000 mA Lithium battery
Charging Time: 240min(700mA)
Battery Lifetime: Continue recording 180min (Wi-Fi off)-150min(Wi-Fi on)
Vibration Alert: Power on/off, Recording, Photo, Low battery
Dimension: 143x75x8.4mm
Weight: 135g
PV-900EVO3 Frame Rate Options – 25 / 30 / 60 FPS
PV-900 EVO3 Feature Focus:
Multiple resolutions, FPS, and recording options
The device allows for precise configuration of video recording modes (Auto/Manual/Motion Detection), recording resolutions (1920×1080, 1280×720, 640×480), and Frames per Second (25fps/30fps/60fps).

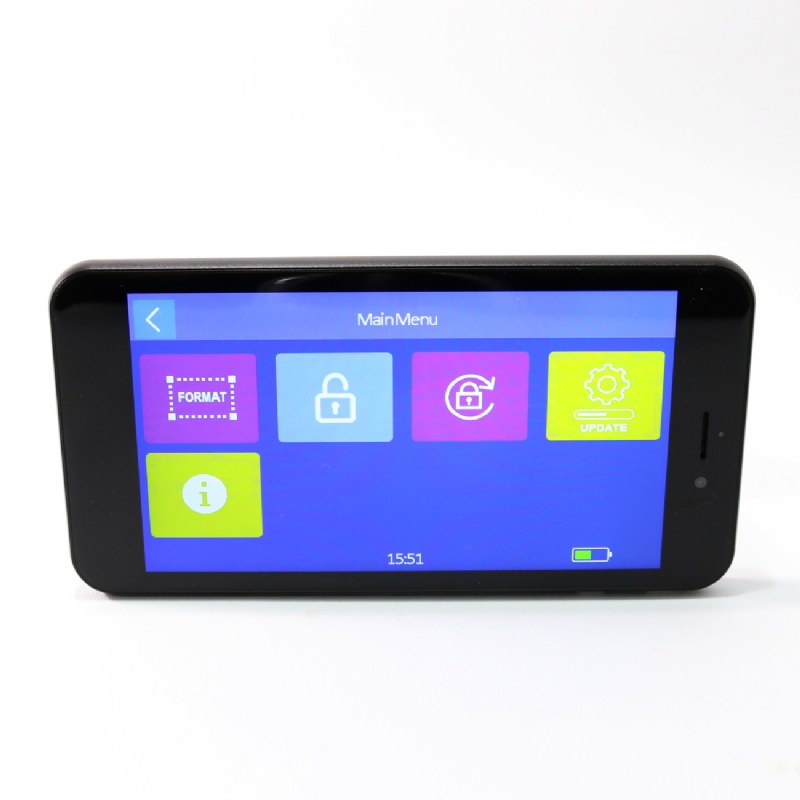

There are two ways of locking the screen/disguise recording
The first allows you to record and not accidentally stop because of touching the LCD etc. And the second one looks like a classic lock interface that requires a password or a pattern to unlock the phone;
- Password Lock Interface
- Screen Display Off
Multi-layered password protection option
You can set up a login password so that your device and the content of your media files are protected.
Audio On/Off
Choose whether to record the audio or not, depending on your surveillance needs.
